SI…C/SI…ET-2RS

SI…C

*For left-hand thread,suffix”L”is added to bearing number and thread sign,e.g.SIL20C M20X1.5L-6H.
SI..C is equivalent to GIR..UK INA,SI..ET-2RS is equivalent to GIR..UK-2RS.



Sliding contact surfaces:Steel/PTFEcomposite material
SI...C

SKU: SI...C/SI...ET-2RS Categories: ,

Bearing Code

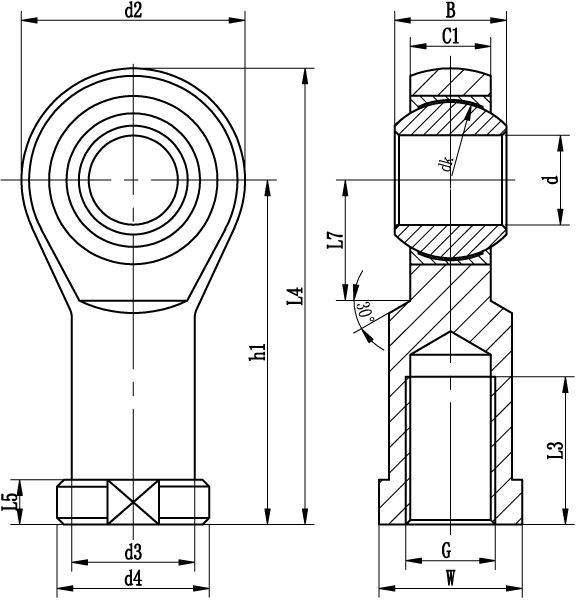

Dimensions(mm)
Load ratings(KN)
≈a°
Weight(kg)
d
B
dk
C1 max
d2
d3 6H
h1
I3 min
I4
I5
I7
w
d4
d5
Dynamic
Static
SI5C
5
6
10
4.5
21
M5X0.8
30
11
40.5
5
11.5
10
13
3.6
8.1
13
0.021
SI6C
6
6
10
4.5
21
M6X1
30
11
40.5
5
11.5
11
11
13
3.6
8.1
13
0.021
SI8C
8
8
13
6.5
24
M8X1.25
36
15
48
5
13
13
13
16
5.8
12.9
15
0.039
SI10C
10
9
16
7.5
29
M10X1.5
43
20
57.5
6.5
15
16
19
19
8.6
17.6
12
0.065
SI12C
12
10
18
8.5
34
M12X1.75
50
23
67
7
18
18
19
22
11
24.5
10
0.096
SI15C
SI15ET-2RS
15
12
22
10.5
40
M14X2
61
30
81
8
21
21
26
26
18
25
36
8
0.160
SI17C
SI17ET-2RS
17
14
25
11.5
46
M16X2
67
34
90
10
24
27
29
29
22
32
45
10
0.240
SI20C
SI20ET-2RS
20
16
29
13.5
53
M20X1.5
77
40
103.5
10
25.5
30
34
34
31
45
60
9
0.350
SI25C
SI25ET-2RS
25
20
35.5
18
64
M24X2
94
48
126
12
33
36
42
42
51
85
83
7
0.660
SI30C
SI30ET-2RS
30
22
40.7
20
73
M30X2
110
56
146.5
15
37.5
46
50
50
65
110
110
6
0.980
SI35ET-2RS
35
25
47
22
82
M36X3
123
60
166
15
40
50
58
58
140
146
6
1.500
SI40ET-2RS
40
28
53
24.0
92
M39X3
142
65
188
18
47
60
65
65
175
180
7
2.100
SI45ET-2RS
45
32
60
28
102
M42X3
125
65
196
20
52
65
70
70
225
240
7
2.700
SL50ET-2RS
50
35
66
31
112
M45X3
160
68
221
20
57
70
75
75
275
290
6
3.500
SI60ET-2RS
60
44
80
39
135
M52X3
175
70
242.5
20
68.5
80
88
88
430
450
6
5.600
SI70ET-2RS
70
49
92
43
160
M56X4
200
80
280
20
81
85
98
98
550
610
6
8.300
SI80ET-2RS
80
55
105
48
180
M64X4
230
85
320
25
91
95
110
110
705
750
6
13.000
